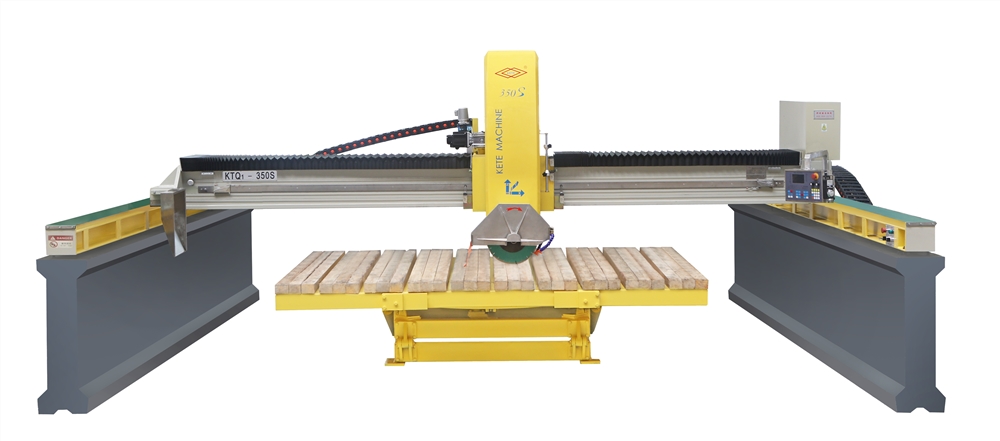

KTQ1-350S BRIDGE AUTOMATIC CUTTING / SAWING MACHINE
This Model's girder adopts precise linear guide, servo control and electronic handwheel. It is faster in cutter movement and position controlled by pulse. All the sound performance include but not limited to cutting speed, accuracy, stablity, easy operated Human Machine Interface make KTQ1-350S a good choice for fine decoration work.
TECHNOLOGY SPECIFICATIONS
|
Maximum Diameter of Saw Blade |
Φ350～Φ500mm |
|
Dimensions of Worktable(L×B) |
3200×2000mm |
|
Maximum Cutting Size |
3200×2000mm |
|
Maximum Length of Rip Cutting |
3200mm |
|
Maximum Lifting Travel of Cutter |
240mm |
|
Power of Main Motor |
15kw |
|
Obliquity of worktable |
0～85° |
|
Rotating Angle of Worktable |
0～360°(0、45、90、180、270°) |
|
Cutting Thickness |
0～150mm |
|
Machine Dimensions (L×B×H) |
6000*4500*2700mm |
|
Gross Weight |
5000kgs | |
